How to replicate a metal standing seam roof with single ply membrane

Protan SE 1,8 Dark Grey
Additional Protan Omega Profiles
2000 m²
Roofing contractor: NRA Roofing
Nottingham, UK
Edwalton Manor Care Home

Case study - Edwalton Manor

The Edwalton Manor Care Home is an upscale care home that provides residential, dementia and nursing care within a luxury environment.

This luxury development required a high-level specification with a 25 year warranty. The roofs were required to be aesthetically similar to the metal standing seam roofs used on the surrounding commercial units.

Protan were able to provide a solution using Single Ply membranes with an end product which successfully achieved it's aims.

Single ply and omega profiles

This project highlights how Single Ply Protan SE membranes in combination with Protan Omega profiles can be combined with fascia systems to give a great overall result.

We overcame challenges of design changes particularly to the terrace areas.

We were able to draw on the expertise of our Partner Suppliers to overcome these issues. An example would be a late change to VIP insulation to overcome an issue of limited height on the rear terrace.

The working site was relatively small so we had to work very closely with the Roofing Contractor NRA to ensure timely deliveries and quick resolutions to any supply issues. The close working relationships established during the completion of this project has led to Protan securing further similar projects.

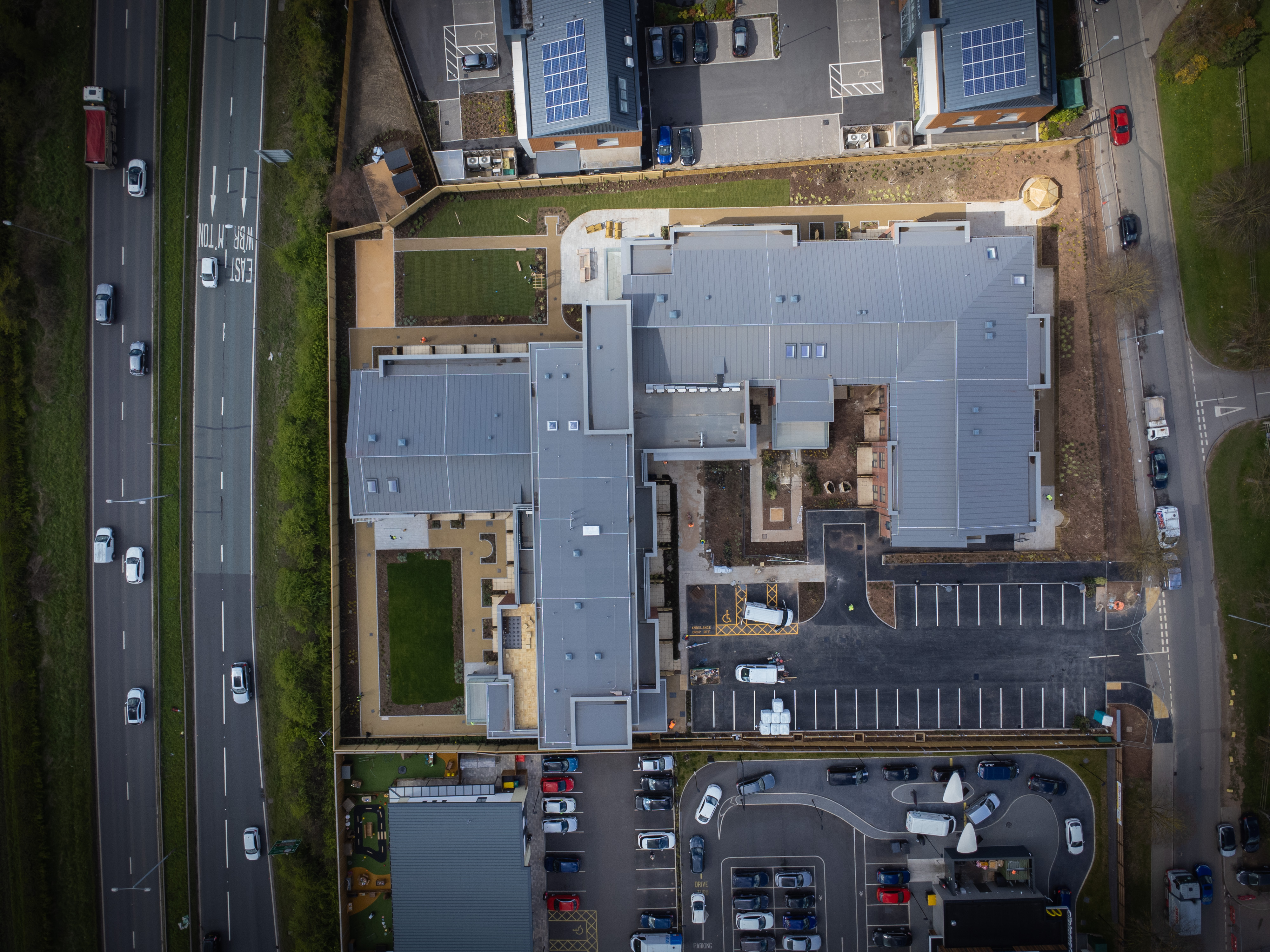

EDWALTON MANOR CARE HOME 5.jpg

This project highlights how Single Ply Protan SE membranes in combination with Protan Omega profiles can be combined with fascia systems to give a great overall result.

Main covering - roof

Type of roof: Warm Roof, OSB timber deck, Mechanically fixed system.
Products used: Protan dark grey 1.8SE membrane, 130mm PIR insulation, PE VCL additional Protan Omega Profile Strips.

Main covering - terraces

Type of roof: Warm Roof, Protected System
Products used: Protan Dark Grey G1.8mm membrane, PIR Tapered Insulation.
